CFTV
Heat shrink tubing and adhesive liner combination that established the CATV industry standard for splice and connector protection.
FEATURES AND BENEFITS
• Craft friendly installation
• Exceptional split resistance
• CFTV adhesive retains bond providing long term protection
• Except for clear or transparent tubing, all colors are UV resistant
• Selective strippability to meet CATV industry specifications
• Minimal heat required to produce error free installation without splitting
• Thermochromatic lines change color to signal waterproof seal
• Shrinks and seals in half the time of alternative products
• Shrink ratio: 3:1
• Continuous operating temperature: -55°C to 110°C
• Shrink temperature: 120°C min.

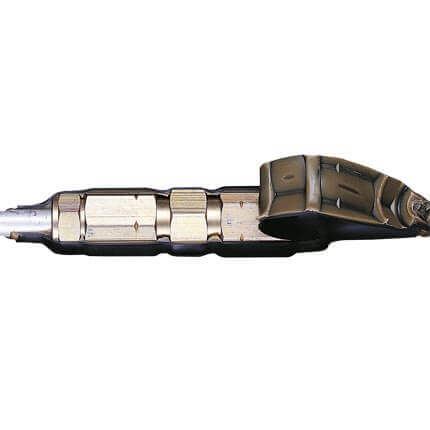

TYPICAL APPLICATIONS• Strain relief of coaxial connectors
• Waterproof protection of CATV connectors
List of products
Code |
Title |
Title 2 |
Tech. info |
Quantity |
Packaging |
Unit |
Delivery |
Cart |
425005 |
/en/db/peteze/image/Slike_V_Modulih/CatalogueItem/3452_icon.jpg
http://www.peteze.si/en/offer/mediumheavy-wall-heat-shrink-tubes/4/cftv-27/
27
CFTV 0400 10,2/3,8-1200 |
lengths 1,2 m |
|
|
1 |
PC |
On stock |
Add
|
425006 |
/en/db/peteze/image/Slike_V_Modulih/CatalogueItem/3452_icon.jpg
http://www.peteze.si/en/offer/mediumheavy-wall-heat-shrink-tubes/4/cftv-27/
27
CFTV 0750 19/5,6-1200 |
lengths 1,2 m |
|
|
1 |
PC |
On stock |
Add
|
425007 |
/en/db/peteze/image/Slike_V_Modulih/CatalogueItem/3452_icon.jpg
http://www.peteze.si/en/offer/mediumheavy-wall-heat-shrink-tubes/4/cftv-27/
27
CFTV 1100 27,9/10,2-1200 |
lengths 1,2 m |
|
|
1 |
PC |
On stock |
Add
|
425008 |
/en/db/peteze/image/Slike_V_Modulih/CatalogueItem/3452_icon.jpg
http://www.peteze.si/en/offer/mediumheavy-wall-heat-shrink-tubes/4/cftv-27/
27
CFTV 1300 33,0/10,2-1200 |
lengths 1,2 m |
|
|
1 |
PC |
On stock |
Add
|
425009 |
/en/db/peteze/image/Slike_V_Modulih/CatalogueItem/3452_icon.jpg
http://www.peteze.si/en/offer/mediumheavy-wall-heat-shrink-tubes/4/cftv-27/
27
CFTV 1500 38,1/12,7-1200 |
lengths 1,2 m |
|
|
1 |
PC |
On stock |
Add
|
425011 |
/en/db/peteze/image/Slike_V_Modulih/CatalogueItem/3452_icon.jpg
http://www.peteze.si/en/offer/mediumheavy-wall-heat-shrink-tubes/4/cftv-27/
27
CFTV 1700 43,2/12,7-1200 |
lengths 1,2 m |
|
|
1 |
PC |
On stock |
Add
|
